Quick Details
| Condition: | New | Application: | Produce Wall Panel | Automatic Grade: | Automatic |
| Production Capacity: | 65-70m/h | Place of Origin: | Shandong, China (Mainland) | Brand Name: | Ling-Feng |
| Model Number: | 120*600 | Voltage: | 380V | Power(W): | 10.5kw |
| Dimension(L*W*H): | 2250*980*900mm | Weight: | 1.5t | Features: | Soundproof |
| Certification: | Utility Model Patent Certificate | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
| Color: | Yellow | Type: | Wall Panel Production Line | Strength: | Efficient Forming Process |
| Product name: | Lightweight Concrete Wall Panel Machinery | Insulation: | First-class | weight: | 1300KG |
| hole: | 85mm |
Packaging & Delivery
| Packaging Details: | Precast Efficiency concrete light weight cement wall panel machine was packed by wood case |
| Delivery Detail: | 15 days |
large-output new-technology precast lightweight concrete wall panel forming machine
Product Description
The description of the Lightweight wall Slab Forming Machine:

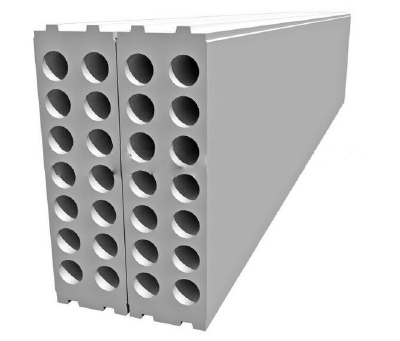

the lightweight wall slab Forming machine is a specialized machine to product non-load bearing external wall slab by extrusion method, widely used for the external partition of building, such as office building, hotel and apartment. The produce with this machine is characterized with low cost, light weight and easy for assembly.
Features:
The concrete lightweight wall panel making machine is mainly used to make the floor slab of house or building. The concrete lightweight wall panel making machine is making the slab through mechanical squeezing. It uses the vibrator to compaction the slab makes the cement, sand and stone etc. fastening together.
We are having many types of the Beam Slabs Forming Machine; different model can produce different kinds of beam to make different building.
Hot sales Lightweight concrete wall panel moulding machine / Hollow core wall panel machine
Model(mm) | 80X600 | 90X600 | 100X600 | 120X600 | 200X600 | 240X280 X2 |
Panel width | 595±2 | 595±2 | 595±2 | 595±2 | 595±2 | 280±2 |
thickness(mm) | 78±1 | 88±1 | 88±1 | 118±1 | 198±1 | 238±1 |
No of hole including diameter (mm) | 8Xφ43 | 7Xφ58 | 7Xφ62 | 5Xφ80 | 3Xφ145 | 1Xφ160 |
forming speed(mm/min) | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Main power(KW) | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
vibration power(KW) | 0.8 | 0.8 | 0.8 | 0.8 | 3 | 3 |
machine dimentions(mm) | 2500X950X750 | 2500X950X700 | 2500X950X750 | 2550X950X750 | 2650X1000X850 | 2650X1000 X900 |
machine weight(kg) | 1010 | 1010 | 1035 | 1650 | 1680 | 1740 |
Advantage:
1.Green environmental protection: the raw materials are from high temperature smelting slag (after water slag, fly ash, slag), cementitious materials as cement, the products are inorganic, no harm to the environment and human body; no pollution, production process emissions free, environment-friendly building materials.
2.Weight: about 50% weight less than the traditional use of red brick, lime sand brick.
3. High strength: the strength of >5MPa
4. Small shrinkage: the drying shrinkage value ≤ 0.6 (mm/m)
5.Insulation: 90mm × 600mm2800mm, 7 hole wall, hole rate is up to 34%, so it has good heat insulation effect.
6.Fire proof: using cement as cementitious material, the cement is the hydraulic products, has good water resistance, water does not jump shell not skin. The fire resistance limit is high, is also very good fireproof material.
7.No radiation: index is far lower than the national standard.
8.Construction of efficient width: qualitative modulus, highly customized special size field cutting, splicing and assembling construction; the smooth surface, no powder sand ash; sawing, drilling, hole, conveniently buried pipeline; shorten the construction time, saving the cost.
9 Significant economic benefits: the biggest product characteristics of light weight, reduces the overall load of building, reduce the construction cost, increase the living area.
Item | Property index | Test Result | Monomial conclusion |
Surface density | ≤ 90kg/ sq.m. | 37kg/ sq .m | qualified |
Flexual-resistance load | ≥ 1.5 | ≥1.9 | qualified |
Impact performance | To bear 30kg standard sandbag ,the fall is 0.5m,the swing attact is 5 time | Attact 10 times is no flaw 12time | qualified |
Single point hanging strength | To bear1000N handing action | The face don't have disrepair and flaw | qualified |
Dry shrinkage | ≤ 0.6mm/m | 0.45mm/m | qualified |
Noise insulation factor | ≥ 35bB | 40dB | qualified |
