- Place of Origin: Shandong, China (Mainland)
- Brand Name: LINGFENG
- Model Number: 90*600
Quick Details
| Condition: | New | Application: | building materials machinery | Automatic Grade: | Automatic |
| Production Capacity: | 1.5-1.8m/min | Place of Origin: | Shandong, China (Mainland) | Brand Name: | Ling-Feng |
| Model Number: | 90*600 | Voltage: | 380v | Power(W): | 6.3kw |
| Dimension(L*W*H): | 2250*980*170mm | Weight: | 1100kg | Features: | fireproof and soundproof |
| Certification: | Certificate of Utility Model Patent | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas, Engineers available to service machinery overseas |
| Color: | OEM | Use: | partition wall panels | Raw Materials: | lightweight material and cement |
| Dia. of holes: | 58mm | No.of holes: | 7 | Width of the panel: | 600mm |
| ThickneWidth of the panelss of the panel: | 90mm | Panel thickness: | 90~180mm | CBM: | 2 |
Packaging & Delivery
| Packaging Details: | 1.Outside package: Standard export wooden cases 2.Inner package: Stretch film |
| Delivery Detail: | about 14 workdays after payment |
lightweight concrete wall panel forming machine /Precast Concrete Panel Extruder Machine For Fence Wall
product description
1.lightweight wall panel machine is a movable producing panel machine which need platform to move during producing.
2- Thin steel wire 2mm-3mm are put inside the panel in advance before producing. And this process is easy, not using tensile machine but wire grip. we would offer.
3-The machine is applied to the high tech. Extrusion technique can
make the panels more density and surface much smoother.
4.Material: cement, flyash, slag ,expand perlite/cement, sand/.prestressed steel wire used. Better to use lightweight materials.
5.Production ground :smooth concrete ground with guide rails.

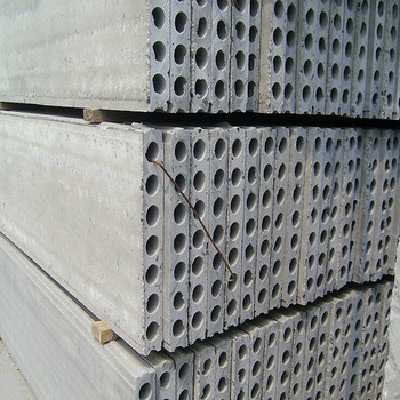

6.Wall panel usage: partition wall, fence wall.
7.Advantage: GrooveTongue side, easy to install, lightweight, save time and labor. Hydraulics lifting, let machine easy to move.
8.Whole production line: Batching machine-Mixer machine-wall panel machine- dumper- cutter
Model
| Slab width (mm) | Slab thickniss (mm) | Dia of Holes | Forming speed (m/min) | Motor Power (KW) | Vibrator (KW) | Dimension (m) | Weight (kg) |
80*600 | 595±2 | 78±1 | 8xΦ43 | >=1.6 | 4 | 0.8 | 2.5*0.95*0.75 | 1260 |
90*600 | 595±2 | 88±1 | 7xΦ58 | >=1.6 | 5.5 | 0.8 | 2.5*0.95*0.70 | 1260 |
100*600 | 595±2 | 98±1 | 7xΦ62 | >=1.6 | 5.5 | 0.8 | 2.5*0.95*0.75 | 1400 |
120*600 | 595±2 | 118±1 | 5xΦ82 | >=1.6 | 5.5 | 0.8 | 2.55*0.95*0.75 | 1650 |
150*600 | 595±2 | 148±1 | 4xØ00 | >=1.6 | 5.5 | 0.8 | 2.65*1.0*0.8 | 1650 |
200*600 | 595±2 | 198±1 | 3xΦ145 | >=1.6 | 7.5 | 3 | 2.65*1.0*0.85 | 1680 |
Company Information
Shuangli Building Materials Machinery Factory is specialized in the production of precast concrete molding machine,including Concrete hollow cored slab making machine, concrete slab machine,concrete lintel machine, precast concrete hollow core slab extruder,concrete purlin machine, concrete column making machine, lightweight concrete wall panel machine, and concrete pipe making machine, concrete mixing machine
scale construction projects and civil needs.
