Quick Details
| Condition: | New | Application: | Garden fence post, Garden fencing | Automatic Grade: | Automatic |
| Production Capacity: | 70~75m/h | Place of Origin: | Shandong, China (Mainland) | Brand Name: | Ling-Feng |
| Model Number: | SL-180*200 | Voltage: | 380v | Power(W): | 5.5kw |
| Dimension(L*W*H): | 2.5*1.1m | Weight: | 1300kg | Features: | Concrete fence |
| Certification: | Certificate of Utility Model Patent | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
| Raw materials: | Concrete | Color: | Gold and Grey | High strength: | pre-stressing wires |
| Cost saving: | 2-worker production | Use: | Cement fencing | Large capacity: | 2 lines |
| Model series: | LF precast fencing | Sizes: | Multiple options | Operator system: | Electrical |
Packaging & Delivery
| Packaging Details: | wooden case |
| Delivery Detail: | 15 days after first payment |
Good quality building material!!! precast concrete fence mold made in China
Product Description
Reinforced wires provide strong power inside the precast concrete fence post and precast concrete fence panels, while making sure the fast efficiency and high quality of the precast concrete fence.
Prestressing concrete fence post making machine for concrete cement fencing is our special advanced products due to our engineers research, with which 60% steel material will be saved compared with traditional revolving die method .Efficiency can be improved 3 to 5 times compared with conical die method, these precast concrete fence post making machine for concrete fencing are easy for operation and conviennient for maintenance ,products(precast concrete fence) from these machines are in good quality ,smooth appreance and accurate in size.
fence post making machine models chart:
| Fence Post Model | Power | Voltage | Dimension | Dia of holes |
| 140*140*2 | 5.1kw | 380v | 2.2*0.75*0.9m | No holes |
| 180*200*2 | 5.7kw | 380v | 2.1*0.95*0.9m | 42mm |
| 200*240*2 | 6.5kw | 380v | 2.5*0.95*0.9m | 76mm |
Model no. | No. of holes | Diameter | number and diameter of wires | Electric motor power (kw) | Vibrator Motor Power (kw) | Total Power (kw) | Molding Speed (m/min) | Overall dimension (mm) | Weight(kg) |
150x150-2 | 1 | 25 | 4/5 | 4 | 1.5 | 5.5 | 1.3-1.5 | 2200X760X850 | 810 |
180x200x2 | solid | 8/5 | 5.5 | 2.2 | 7.7 | 1.3-1.5 | 2250×900×900 | 1300 | |
170x200x2 | solid | 4/5 | 5.5 | 2.2 | 7.7 | 1.3-1.5 | 2250×900X900 | 1300 | |
180x280x2 | soilid | 8/5 | 5.5 | 3 | 8.5 | 1.3-1.5 | 2250×1150×900 | 1400 |
Main Application
SL fence post making machine application:

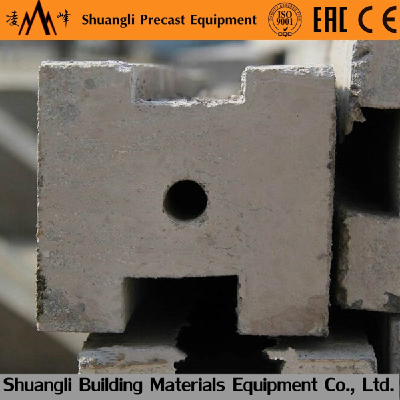

Concrete fence post making machine---Wet cast, steel reinforced concrete fence posts which are suitable for domestic panel fencing. Concrete Slotted fence posts are the long lasting alternative to timber posts as each post has four internal steel reinforcing bars.
Concrete fence posts provide strength and durability to your precast concrete fencing and are not susceptible to rot in the ground.
Concrete fence post making machine for concrete fencing---All the concrete fence posts contain steel reinforcing to the required specification. We carry large stocks of our complete range of concrete posts, concrete gravel boards and other products.
Concrete fence post making machine for concretre fences---Fencing panels will fit into the slotted fence posts.Concrete fence posts for chainlink, welded mesh, timber fencing, strained wire fencing and all other types of concrete fencing products. These are manufactured in our own factory by automated machinery.
Fence Post Model | Motor power (kw) | Vibration Power (kw) | Dimension (mm) | Weight (kg) | Molding speed (m/min) | Holes No. | Hole diameter (mm) | NO.of poles |
60*60*6 | 4 | 1.5 | 2100*750*650 | 830 | 1.2-1.4 | 0 | 0 | 6 |
80*80*4 | 4 | 1.5 | 2100*660*680 | 820 | 1.2-1.4 | 4 | 25 | 4 |
80*80*6 | 4 | 1.5 | 2100*860*680 | 960 | 1.2-1.4 | 6 | 22 | 6 |
80*100*4 | 4 | 1.5 | 2100*740*680 | 850 | 1.2-1.4 | 4 | 30 | 4 |
80*100*8 | 5.5 | 3 | 2300*1220*680 | 1350 | 1.2-1.4 | 8 | 30 | 8 |
100*100*4 | 4 | 1.5 | 2100*740*700 | 900 | 1.2-1.4 | 4 | 35 | 4 |
120*120*5 | 5.5 | 3 | 2100*960*720 | 1150 | 1.2-1.4 | 5 | 35 | 5 |
120*110*8 | 7.5 | 3 | 2300*1280*800 | 1680 | 1.2-1.4 | 8 | 35 | 8 |
200*200*3 | 7.5 | 3 | 2300*920*800 | 1750 | 1.0-1.2 | 3 | 60 | 3
|
